Repair Procedures: Removal

  1. Lift the vehicle.
  2. Disconnect the fuel filler hose (A).
  3. Disconnect the ventilation hose (B) and leveling hose (C).
    G13052700Courtesy of HYUNDAI MOTOR AMERICA

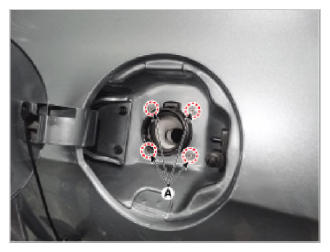

  4. Open the fuel filler door.
  5. Remove the filler-neck mounting bolt (A).
    G13052701Courtesy of HYUNDAI MOTOR AMERICA

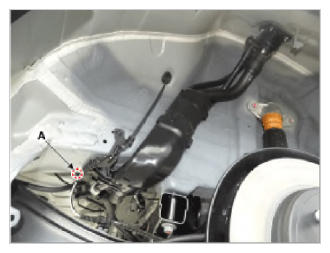

  6. Remove the rear-LH wheel, tire, and the inner wheel house.
  7. Remove the filler-neck assembly after loosening the mounting bolt (A).
    G13052702Courtesy of HYUNDAI MOTOR AMERICA
