Smart Key Status Check
- Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

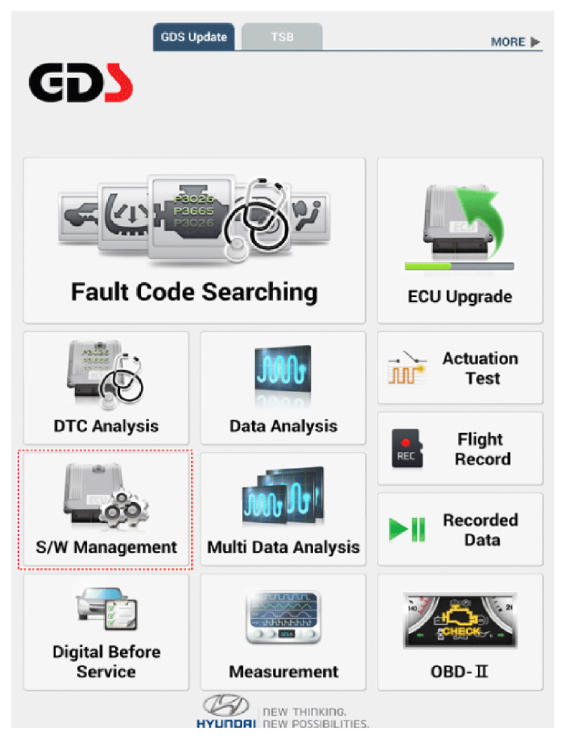

- Select the 'S/W Management' and 'Car model'.
 Courtesy of HYUNDAI MOTOR AMERICA
|

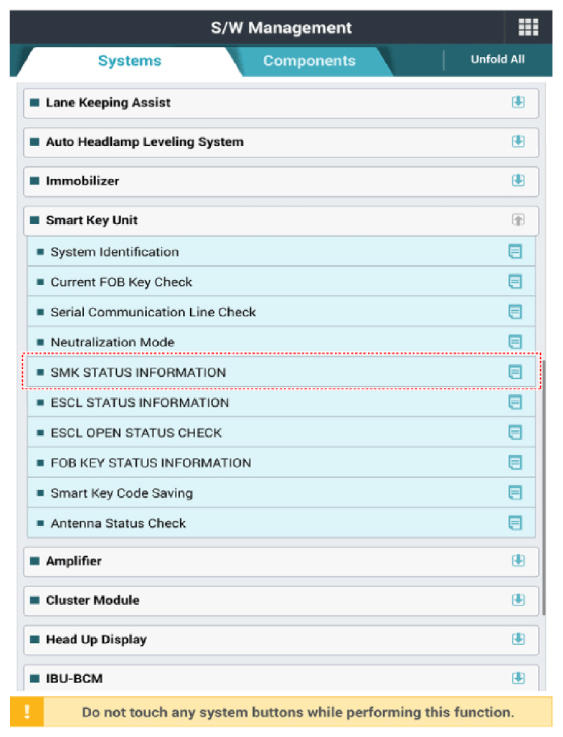

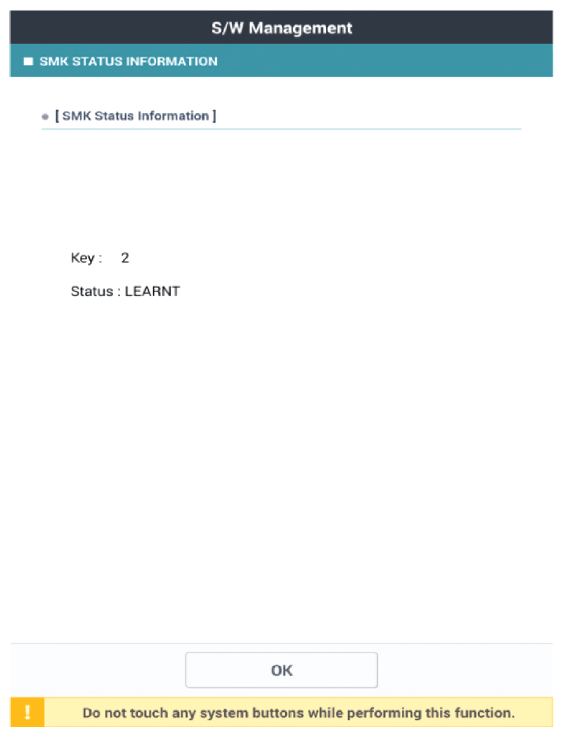

- Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|
