Clutch Switch

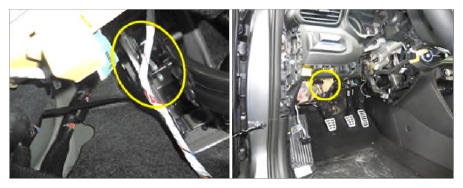

G15152332Courtesy of HYUNDAI MOTOR AMERICA

Clutch Position Sensor (TM gear speed sensor) is a stroke sensor which is controlled by PWM for a certain time. Clutch switch is consist of top and bottom switch as one complete unit and bottom switch is only able to be ON under the condition of top switch ON.
