Components And Components Location: Components

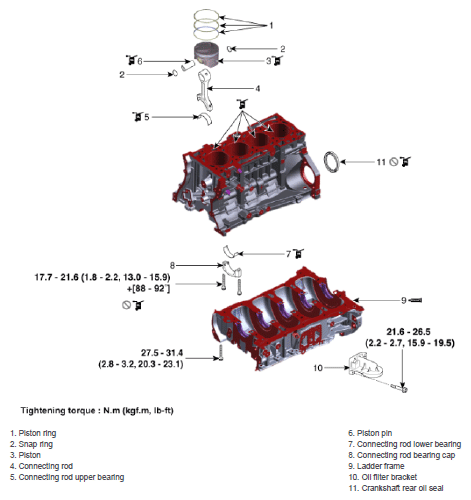

Fig 1: Cylinder Block Components Location With Torque Specification (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

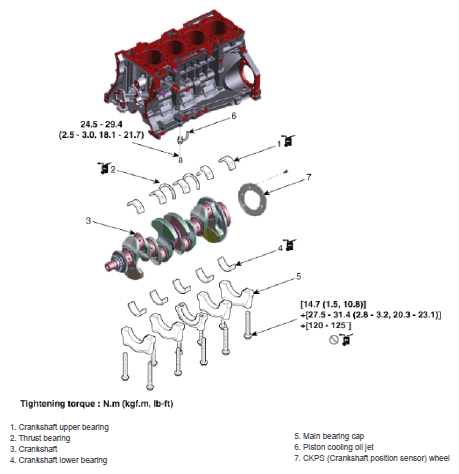

Fig 2: Cylinder Block Components Location With Torque Specification (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
