Hyundai
>>
2021
>>
Veloster 2.0, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 2.0L
>>
Inhibitor Switch
>>
Repair Procedures
>>
Inspection
>>
Inspection Flow Of The Inhibitor Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

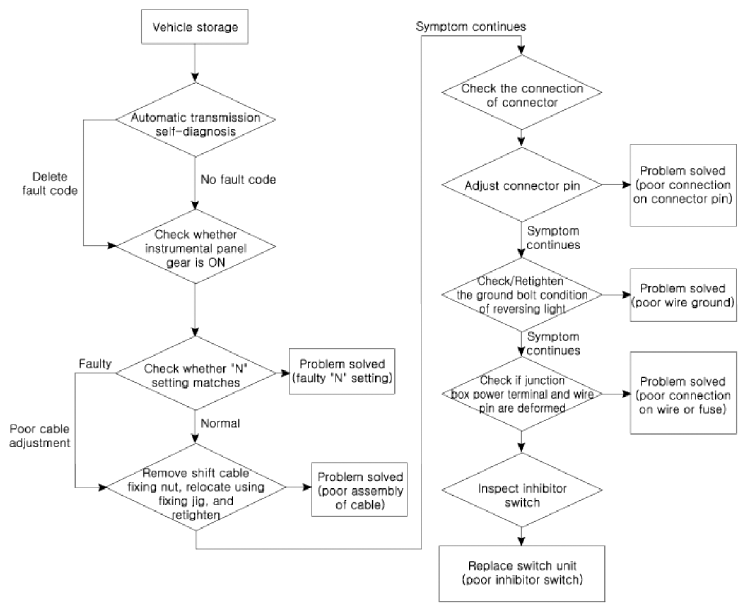

Inspection Flow Of The Inhibitor Switch
Courtesy of HYUNDAI MOTOR AMERICA
