Steering Wheel Play Inspection

  1. Turn the steering wheel so that the front wheels can face straight ahead.

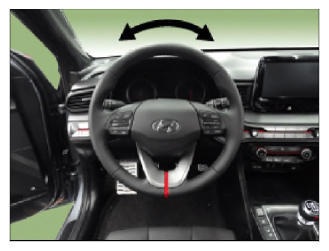

  2. Measure the distance the steering wheel can be turned without moving the front wheels.

    Standard value  : 30 mm (1.18 in.) or less

    G13053154Courtesy of HYUNDAI MOTOR AMERICA
  3. If the play exceeds standard value, inspect the steering column, shaft, and linkages.
