Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

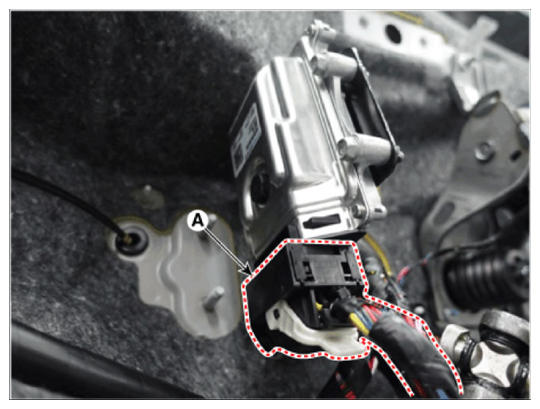

- Disconnect the SBW control unit (SCU) connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

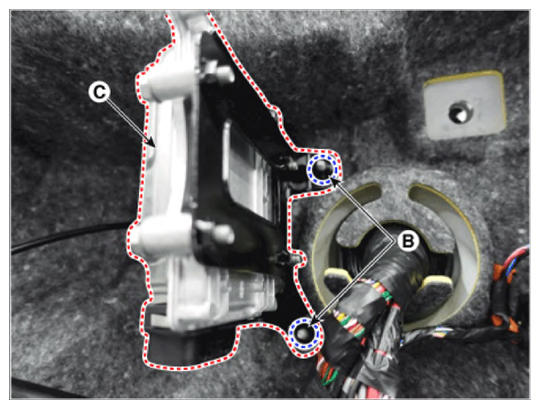

- Remove the SBW Control Unit (SCU) (C) after removing the nuts (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|
