Repair Procedures: Installation

NOTE:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  • When installing the throttle body, be careful not to get foreign material into the throttle body.
  1. Install in the reverse order of removal.
  2. Reset the ECM adaptive values after replacing the ETC.

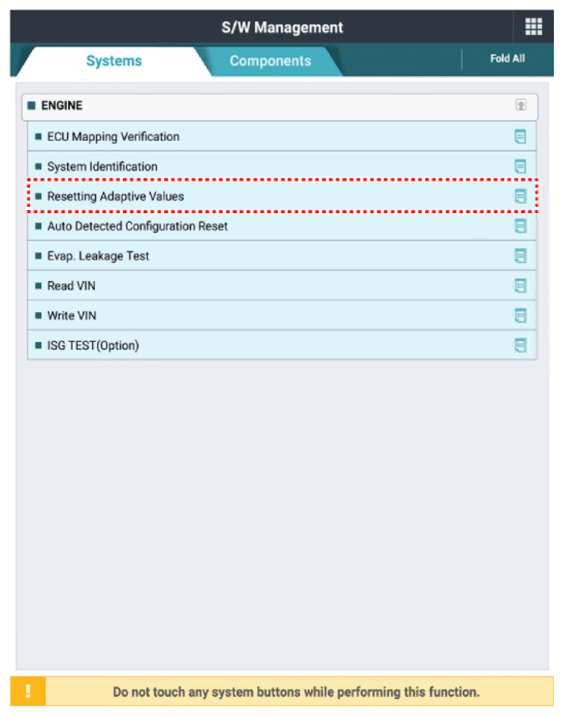

    G14534178Courtesy of HYUNDAI MOTOR AMERICA

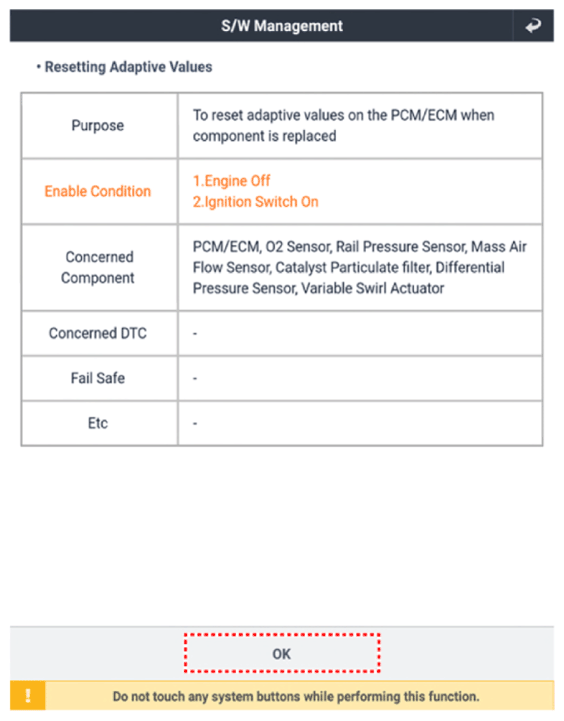

    G14534179Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the ETC learning procedure

    (Refer to ETC System - "ADJUSTMENT ")
