Repair Procedures: Removal

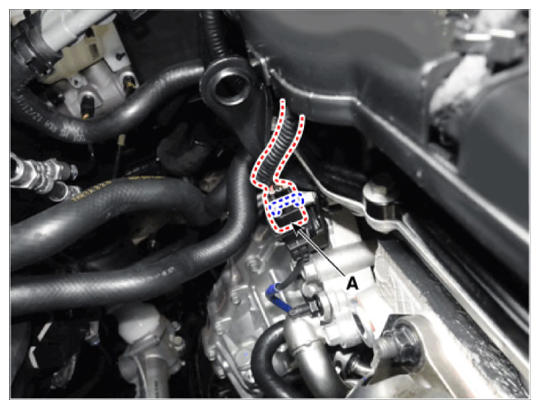

  1. Disconnect the crankshaft position sensor connector (A).
    G14534208Courtesy of HYUNDAI MOTOR AMERICA

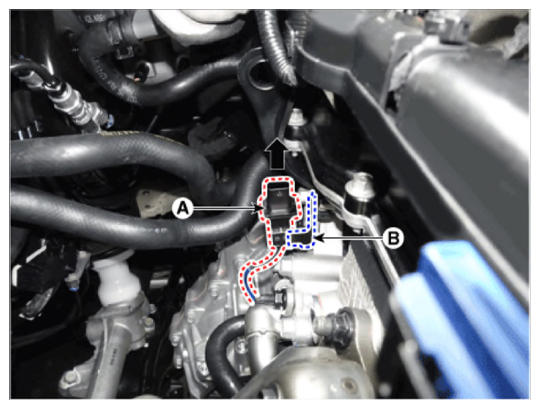

  2. Remove the connector (A) from the bracket (B).
    G14534209Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the transfer assembly [4WD].

    (Refer to 4 Wheel Drive (4WD) System - "FRONT WHEEL TRANSFER ASSEMBLY ")

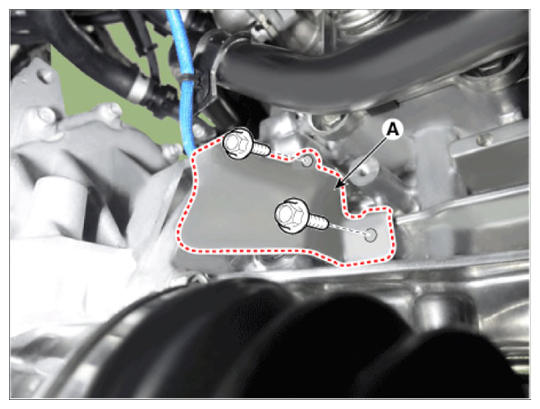

  4. Remove the cover (A) after loosening the mounting bolt.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14534210Courtesy of HYUNDAI MOTOR AMERICA

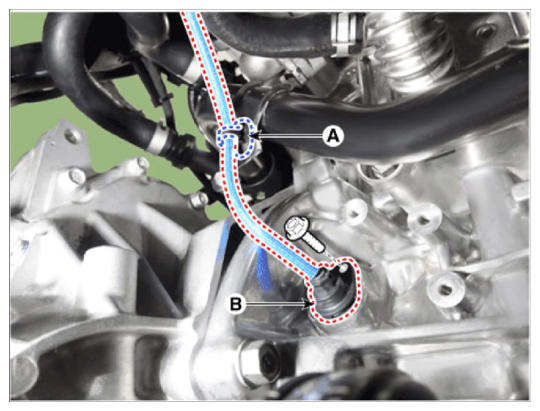

  5. Disconnect the wiring fixing clip (A) and then removing the sensor (B) after loosening the mounting bolt.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14534211Courtesy of HYUNDAI MOTOR AMERICA
