Components Location

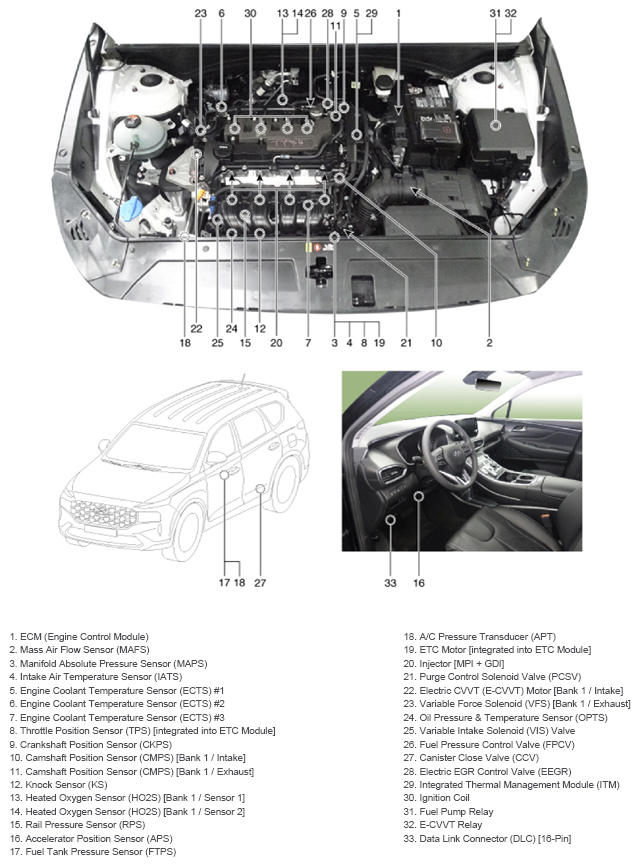

G14534144Courtesy of HYUNDAI MOTOR AMERICA

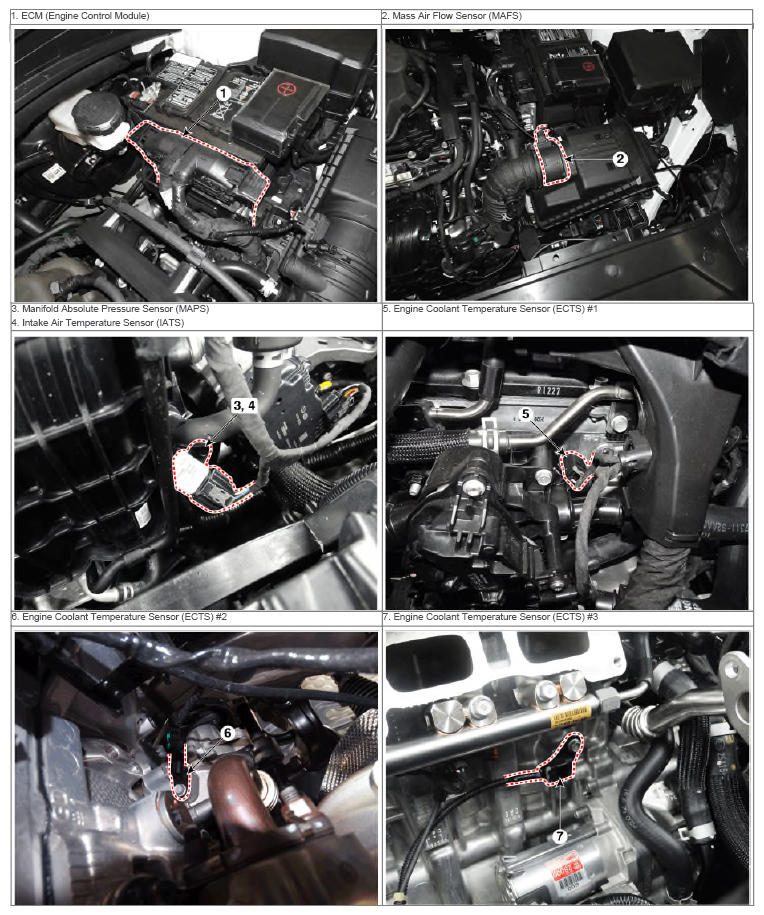

G14534145Courtesy of HYUNDAI MOTOR AMERICA

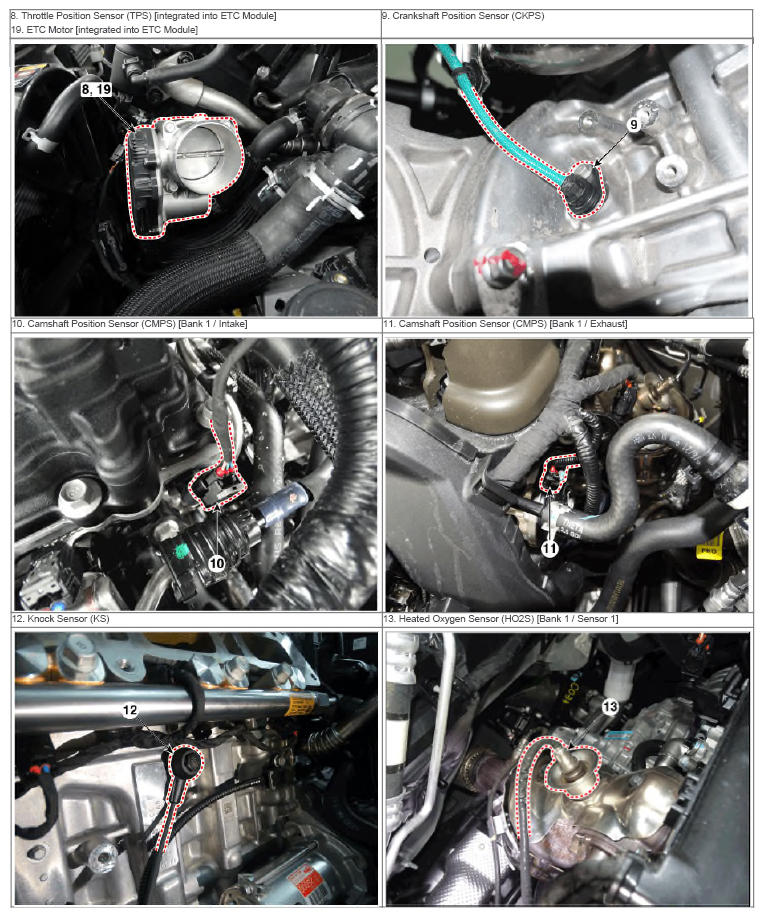

G14534146Courtesy of HYUNDAI MOTOR AMERICA

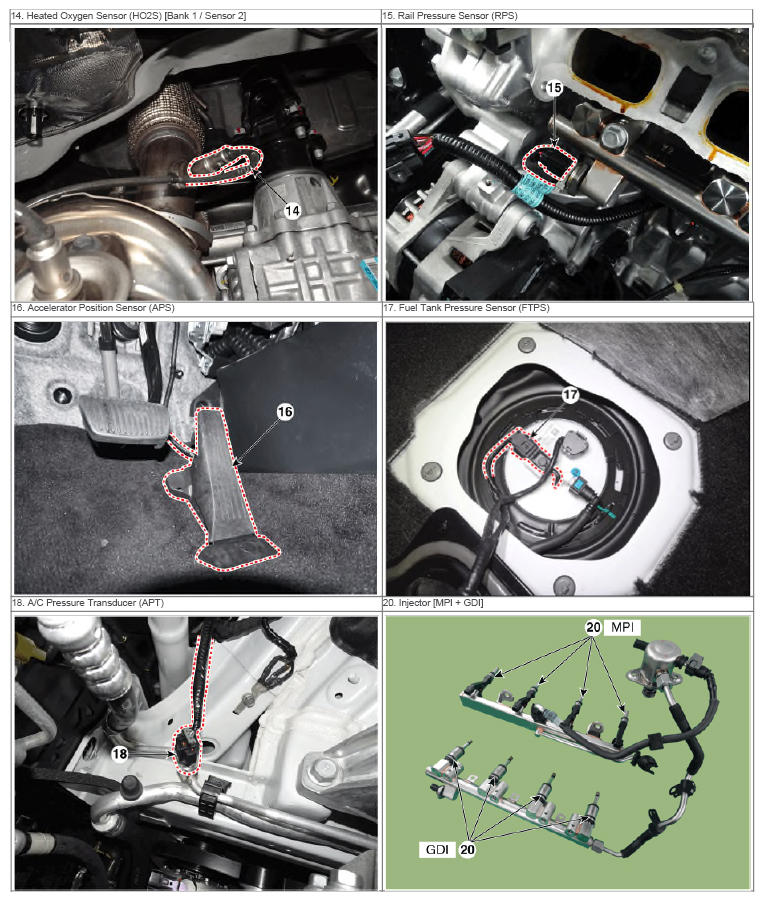

G14534147Courtesy of HYUNDAI MOTOR AMERICA

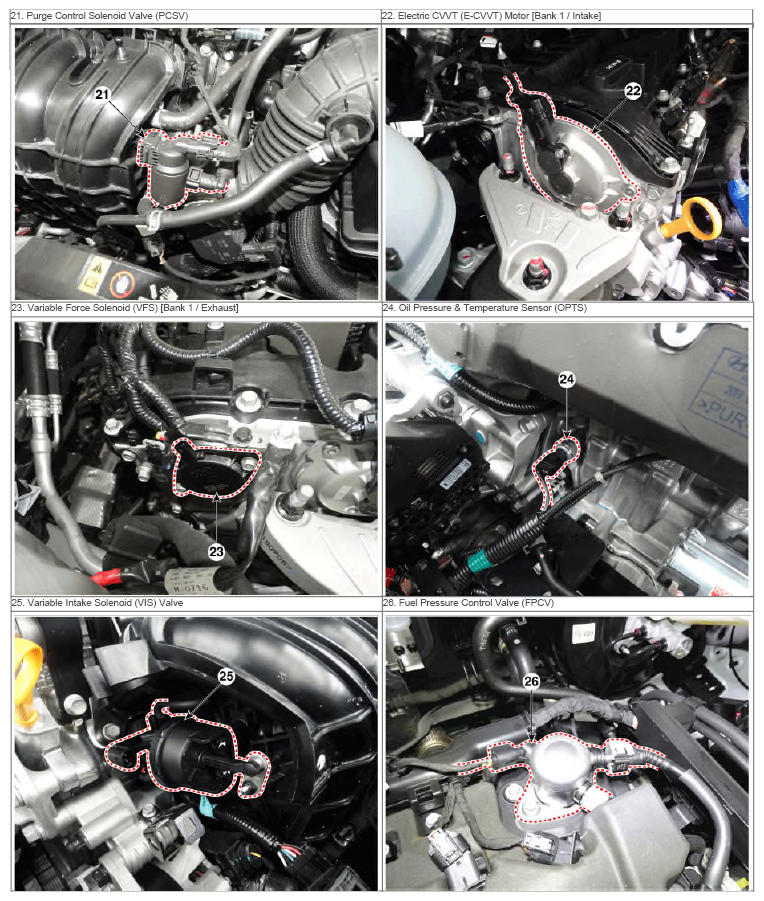

G14534148Courtesy of HYUNDAI MOTOR AMERICA

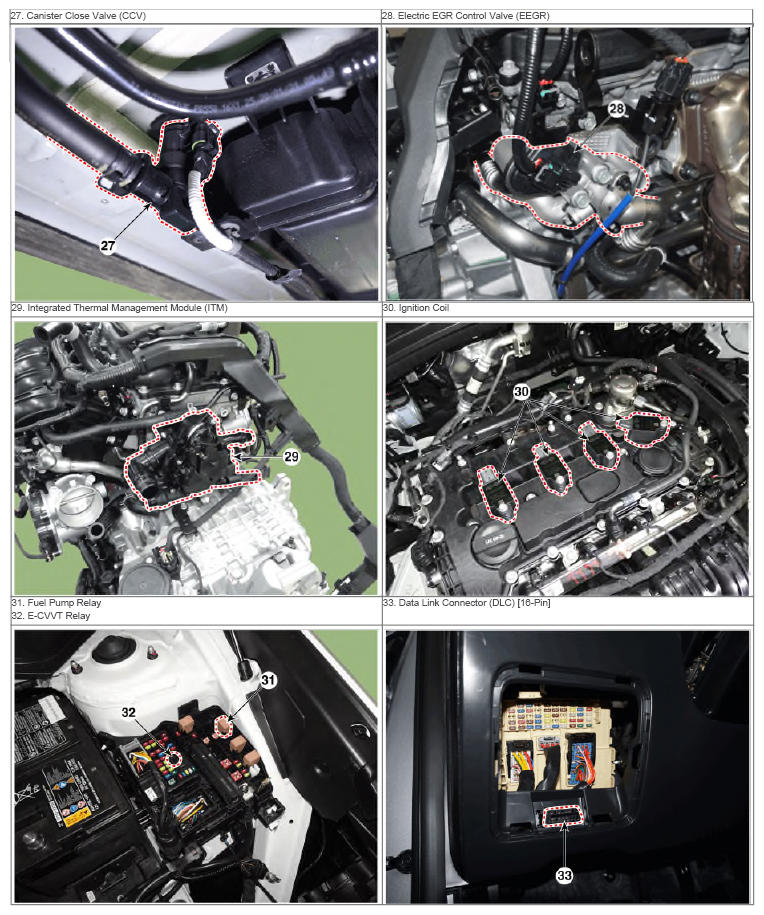

G14534149Courtesy of HYUNDAI MOTOR AMERICA
