200W, 400W
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the heater control.
- Disconnect the DC/DC converter connector.

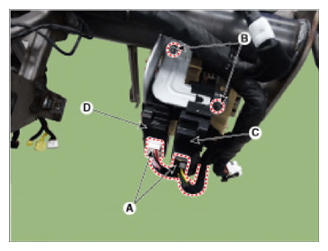

- Remove the DC/DC converter after loosening the mounting nuts (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
