Gasoline 3.8L

WARNING: This page is about a different variant/trim than selected.

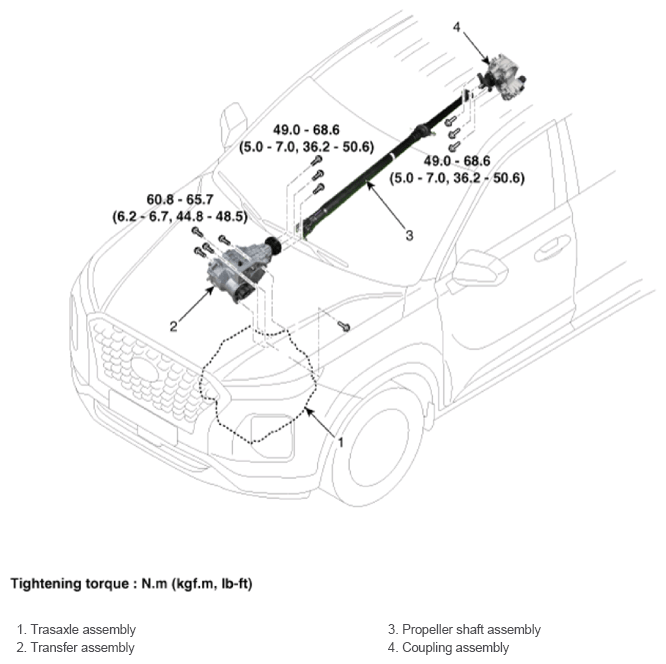

Fig 1: Front Wheel Transfer Assembly Components Location With Torque Specifications (Gasoline 3.8L)
G14424381Courtesy of HYUNDAI MOTOR AMERICA
