Trunk Antenna

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

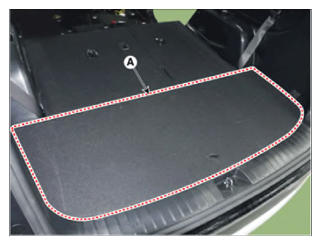

  2. Remove the luggage floor box mat (A).
    G15473272Courtesy of HYUNDAI MOTOR AMERICA

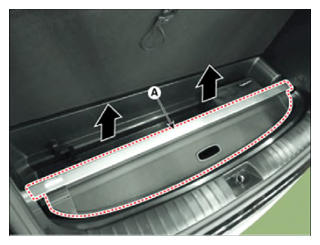

  3. Remove the cago screen (A).
    G15473273Courtesy of HYUNDAI MOTOR AMERICA

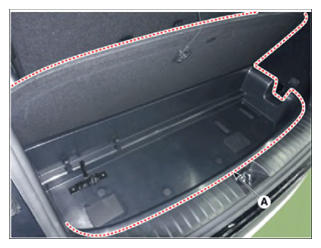

  4. Remove the luggage floor box (A) after loosening mounting screws.
    G15473274Courtesy of HYUNDAI MOTOR AMERICA

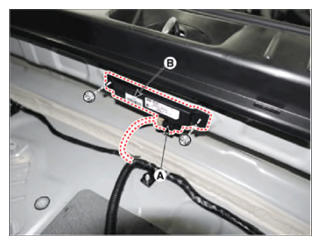

  5. Remove the trunk antenna (B) after loosening mounting screws and disconnecting the connector (A).
    G15473275Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
