Engine Control System Diagnosis (9 Of 9)
>>
DTC U04B1-00: Invalid Data Received From Battery Monitor Module
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

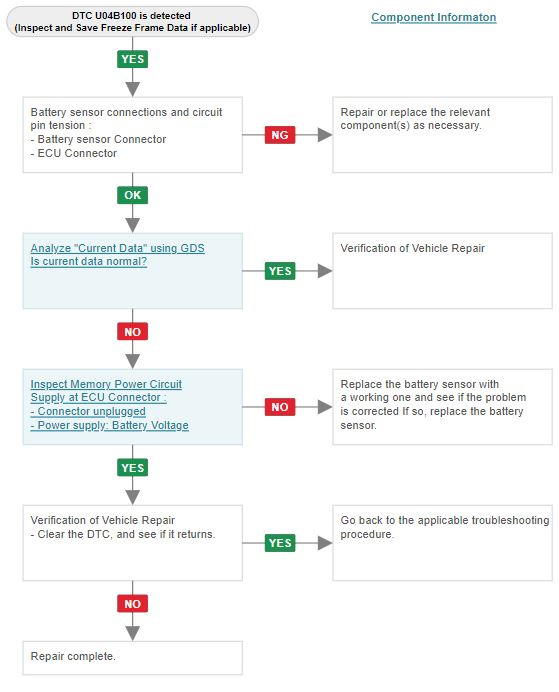

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
