Engine Control System Diagnosis (2 Of 9)
>>
DTC P0112-00: Intake Air Temperature Sensor 1 Circuit Low Input
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flowchart
Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

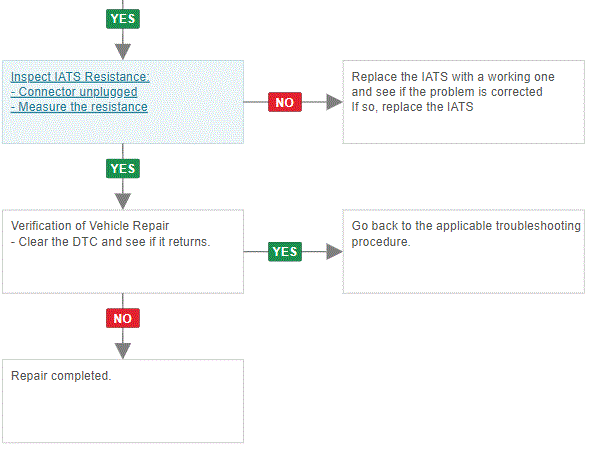

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
