Battery Tray

  1. Remove the battery.

    (Refer to Engine Electrical System - "REMOVAL ")

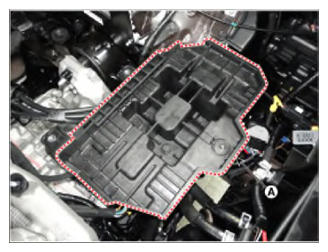

  2. Remove the battery tray (A) after loosening the mounting bolts

    Battery tray mounting bolt:

    8.8 - 29.4 N.m (0.9 - 3.0 kgf.m, 6.5 - 21.7 lb-ft)

    G14423950Courtesy of HYUNDAI MOTOR AMERICA
