LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Hyundai
>>
2021
>>
Palisade Calligraphy, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Assist Power Window Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

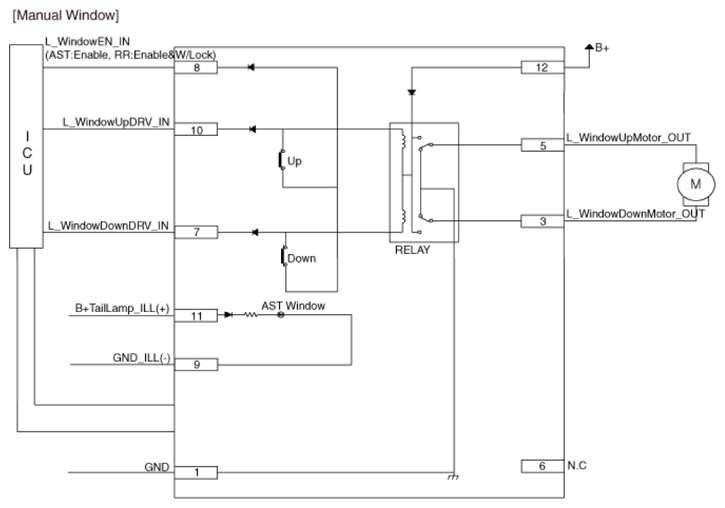

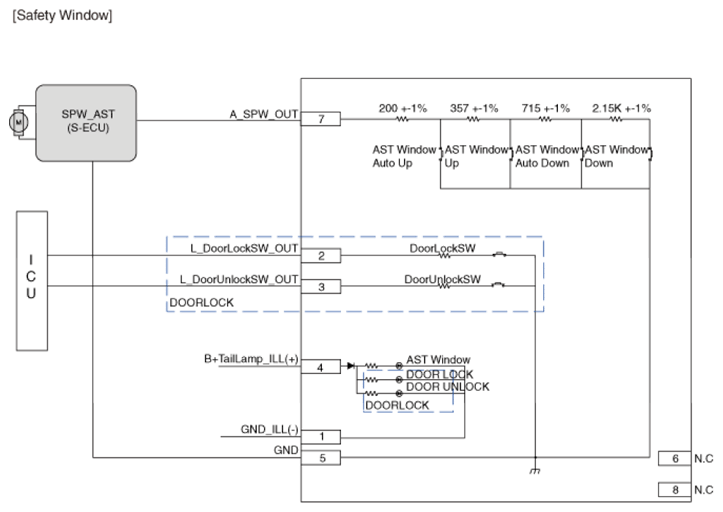

Assist Power Window Switch
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
