Repair Procedures: Removal: Battery

  1. Turn ignition switch OFF.
  2. Remove the air duct (A).

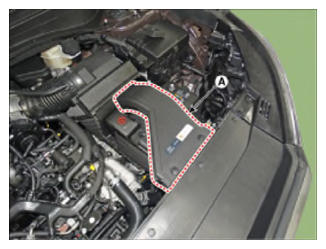

    G14423946Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the battery negative (-) terminal (A).

    Battery negative (-) terminal tightening nut:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.2 - 8.7 lb-ft)

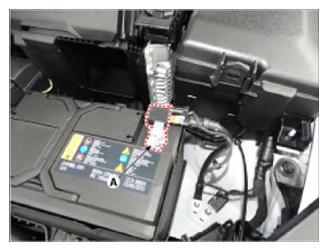

    G14423947Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the battery positive (+) terminal (A).

    Battery negative (-) terminal tightening nut:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.2 - 8.7 lb-ft)

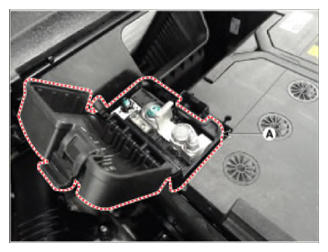

    G14423948Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the insulation pad.
  6. Remove the battery mounting bracket (B) after loosening the mounting bolt (A).

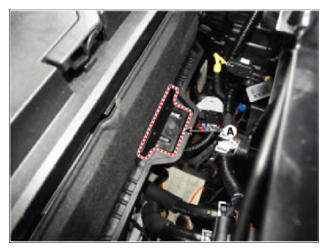

    G14423949Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the battery.
