Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the air cleaner assembly

    (Refer to Engine Mechanical System - "AIR CLEANER ")

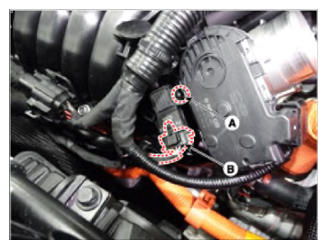

  3. Disconnect the manifold absolute pressure sensor connector (A).
  4. Remove the installation bolt (B), and then remove the sensor from the surge tank.
G13843231Courtesy of HYUNDAI MOTOR AMERICA
