Components & Components Location: Components

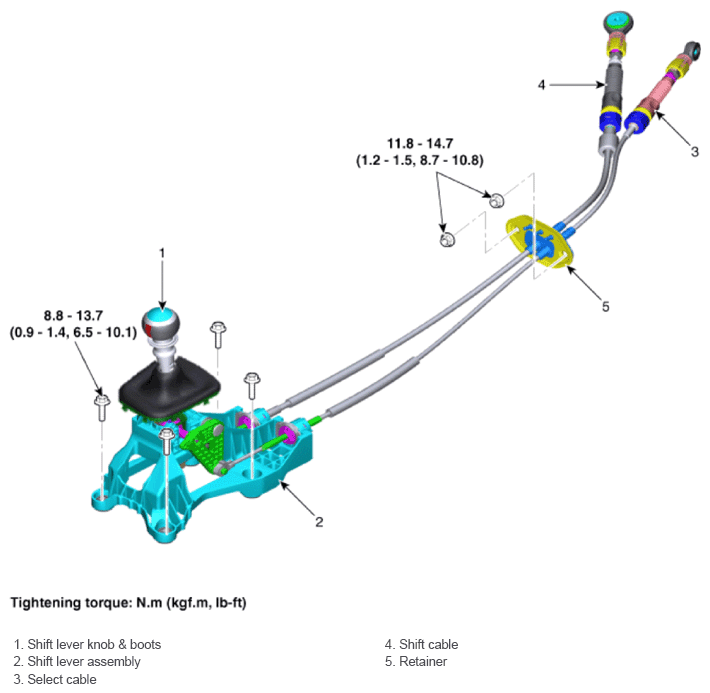

Fig 1: Control Cable Components Location With Torque Specification
G14596633Courtesy of HYUNDAI MOTOR AMERICA
