Throttle Position Sensor (TPS) [integrated into ETC Module]

Type: IC Rotation Sensor type

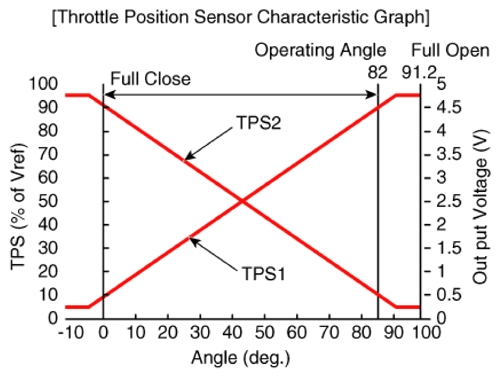

Specification

G14596316Courtesy of HYUNDAI MOTOR AMERICA
