Engine Control/Fuel System - General Information - 1.6L (Except HEV)
>>
Specifications
>>
Sensors
>>
Rail Pressure Sensor (RPS)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Rail Pressure Sensor (RPS)
Type: Piezo-electric type

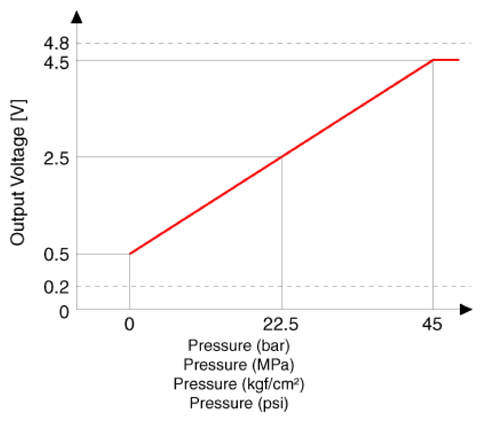

Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
