Power Window Main Switch
>>
Rear Power Window Switch (Manual)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

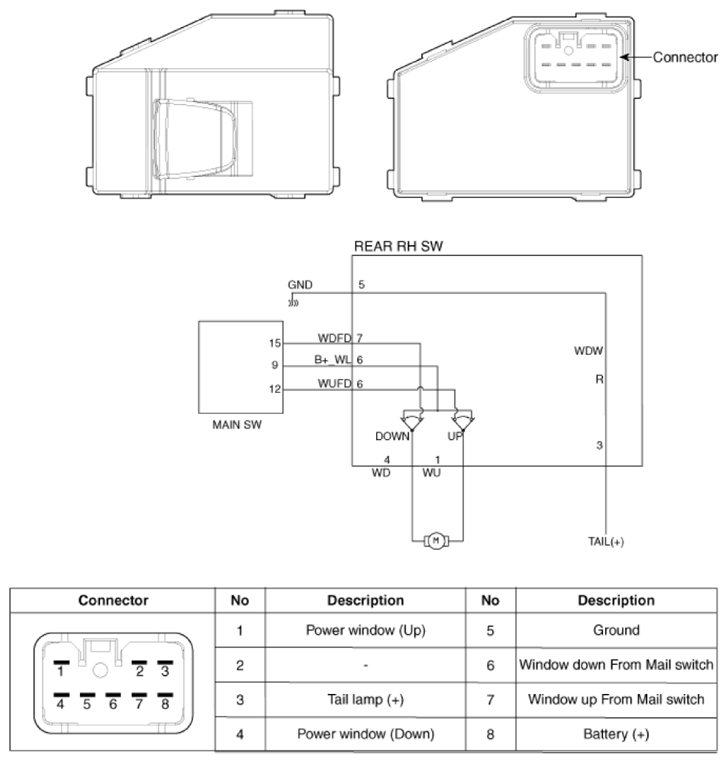

Rear Power Window Switch (Manual)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
