Component Location

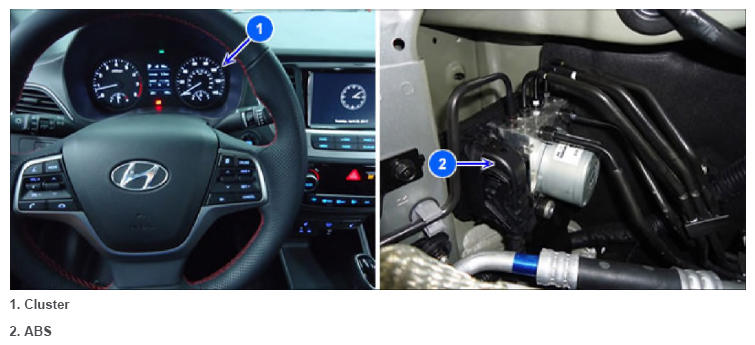

G14079741Courtesy of HYUNDAI MOTOR AMERICA
NOTE: Cluster: "INSTRUMENT CLUSTER"
ABS (Antilock Brake System): "ABS CONTROL MODULE"
