Home
>>
Hyundai
>>
2021
>>
Accent Limited
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window System
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Power Window Main Switch
>>
Assist Power Window Switch (Manual)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

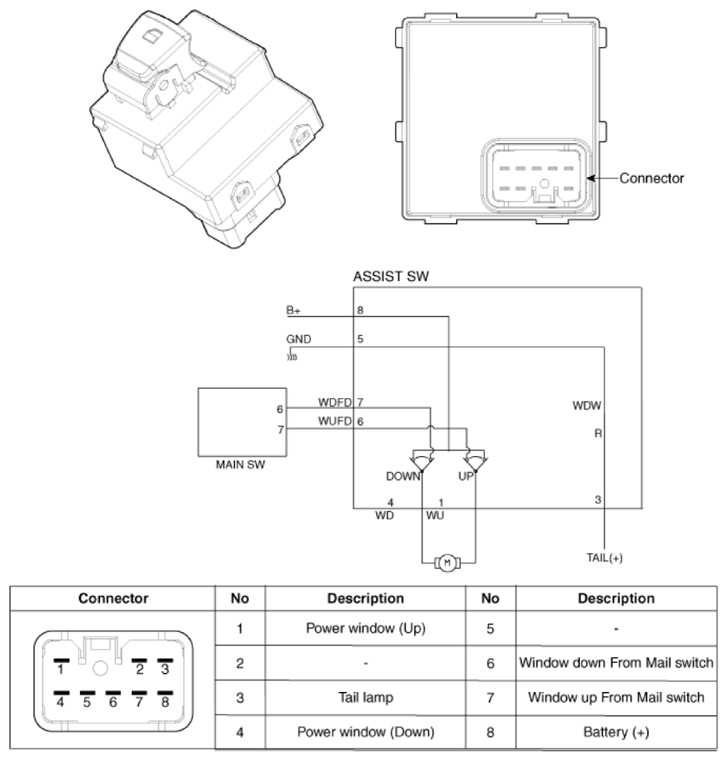

Assist Power Window Switch (Manual)
Courtesy of HYUNDAI MOTOR AMERICA
