Diagnosis with Diagnostic tool

  1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).

    The diagnostic system (Diagnostic tool) provides the following information.

    1. Fault Code Searching: Checking failure and code number (DTC)
    2. Data Analysis: Checking the system input/output data state
    3. Actuation test: Checking the system operation condition
    4. S/W Management: Controlling other features including system option setting and zero point adjustment

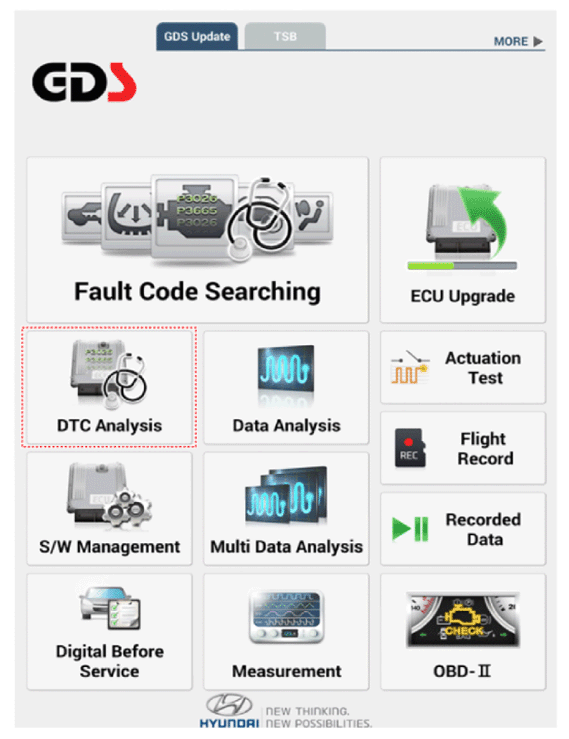

  2. If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".
    G14078816Courtesy of HYUNDAI MOTOR AMERICA

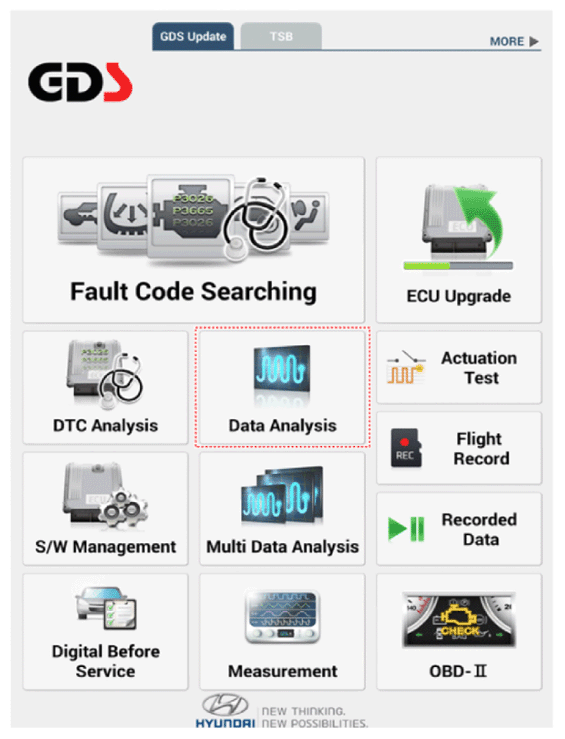

  3. Select the 'Data Analysis' and 'Car model'.
    G14078817Courtesy of HYUNDAI MOTOR AMERICA

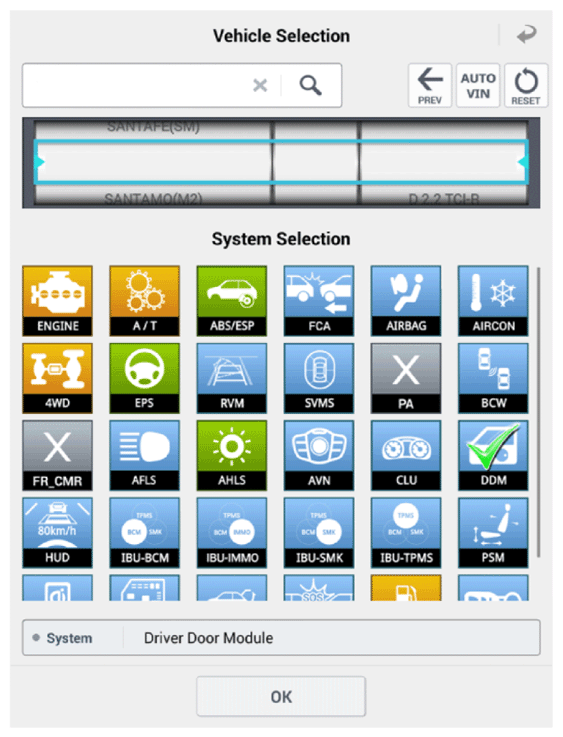

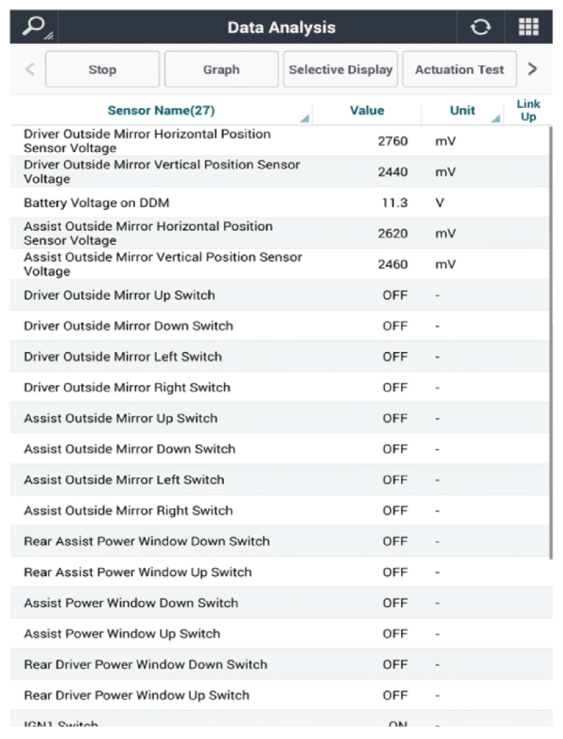

  4. Select the 'DDM' to search the current state of the input/output data.
    G14078818Courtesy of HYUNDAI MOTOR AMERICA
    G14078819Courtesy of HYUNDAI MOTOR AMERICA

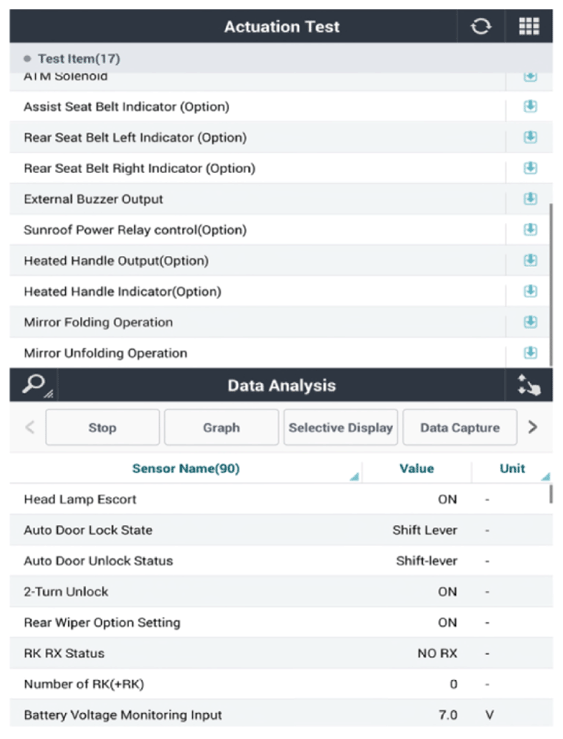

  5. To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.
    G14078820Courtesy of HYUNDAI MOTOR AMERICA
