Assist/Rear Power Window Switch Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

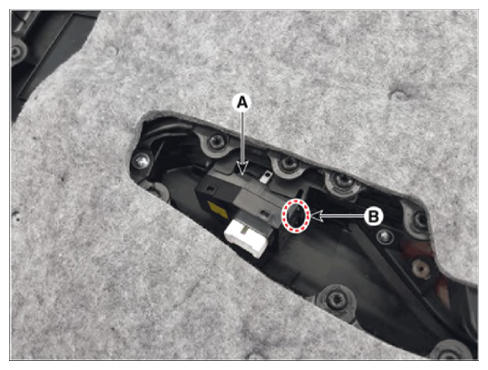

  3. Remove the power window switch (A) after disengaging the mounting clips (B).
    G14078813Courtesy of HYUNDAI MOTOR AMERICA

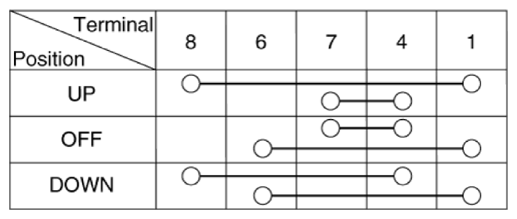

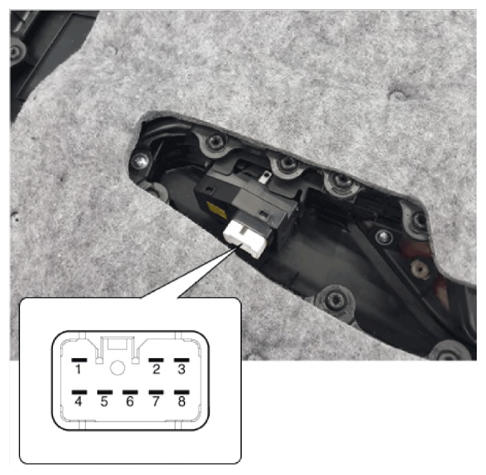

  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
    G14078814Courtesy of HYUNDAI MOTOR AMERICA
    G14078815Courtesy of HYUNDAI MOTOR AMERICA
