Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the steering wheel assembly.

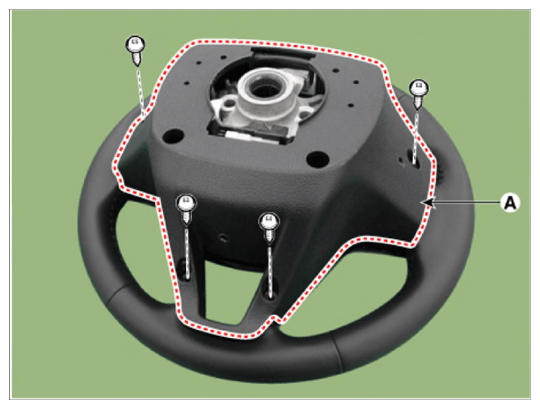

  3. Remove the screws from the steering back cover (A).
    G14076819Courtesy of HYUNDAI MOTOR AMERICA

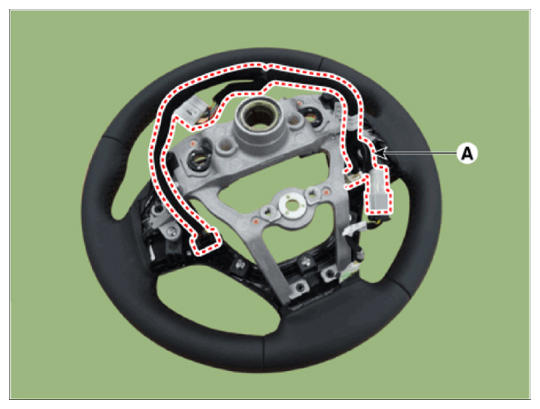

  4. Remove the steering remote control connector (A).
    G14076820Courtesy of HYUNDAI MOTOR AMERICA

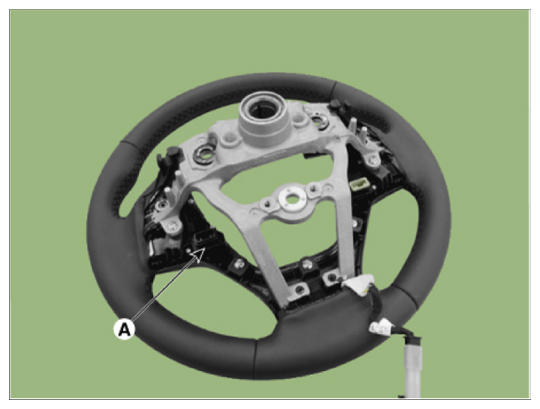

  5. Remove the steering remote control (A) after loosening the screws.
    G14076821Courtesy of HYUNDAI MOTOR AMERICA
