Repair Procedures: Inspection
- Install the steering wheel remote control and cover after connecting the connector.
- Install the steering wheel and driver airbag module.
- Connect the negative (-) battery terminal.

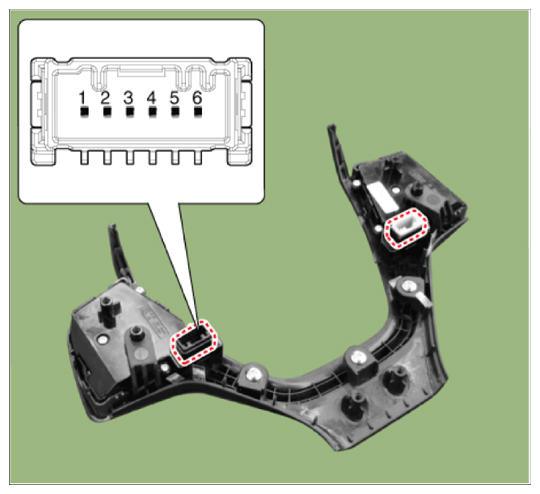

- Measure the resistance between terminals on the control switch when each function switch is ON (and switch is depressed).
Switch Connector terminal Resistance (±5%) CANCEL 2-5 390 Ω SET (-) 2-5 610 Ω RES (+) 2-5 910 Ω CRUISE 2-5 1.38 kΩ
