Component Location: Injector

Injector

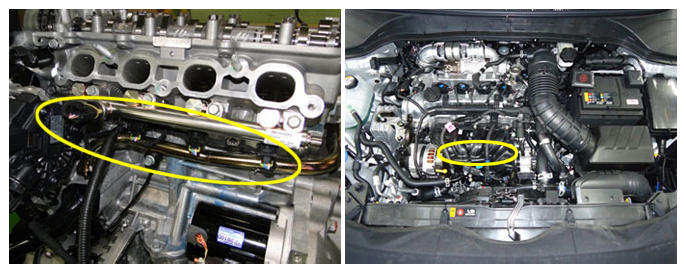

G12600334Courtesy of HYUNDAI MOTOR AMERICA

Injectors jet out high pressure fuel calculated by ECM to each cylinders. Direct and separated injections improve fuel efficiency and engine power.
