Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

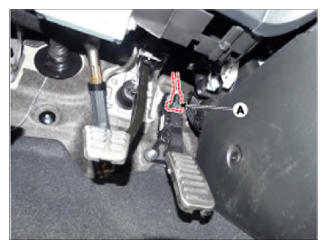

- Disconnect the accelerator position sensor connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

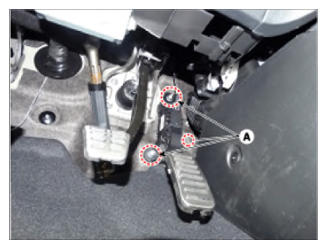

- Remove the installation nut (A), and then remove the accelerator pedal module.
 Courtesy of HYUNDAI MOTOR AMERICA
|
