Without Paddle Shift

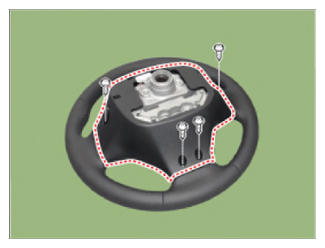

- Loosen the screw and then remove the lower cover.
 Courtesy of HYUNDAI MOTOR AMERICA
|

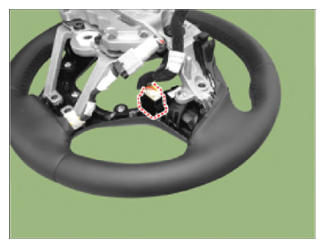

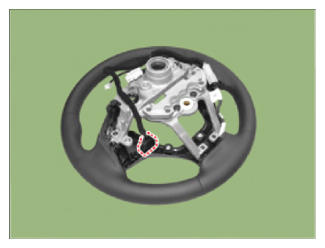

- Disconnect the remote control switch connector.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

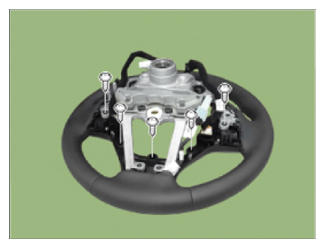

- Separate the remote control switch by loosening the screw.
 Courtesy of HYUNDAI MOTOR AMERICA
|

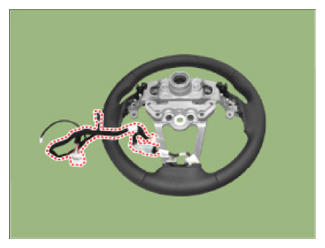

- Disconnect the connector and then remove the wiring.
 Courtesy of HYUNDAI MOTOR AMERICA
|
- To reassembly, reverse the disassembly procedure.
