With Paddle shift

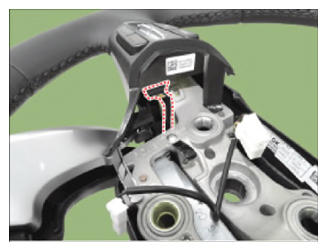

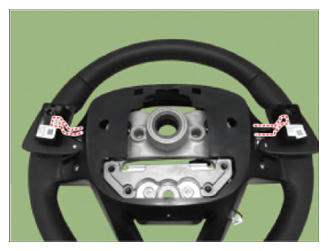

- Remove the paddle shift switch.
 Courtesy of HYUNDAI MOTOR AMERICA
|

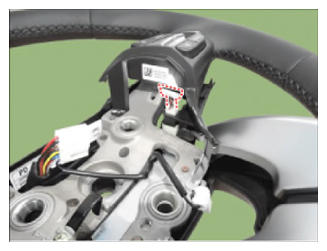

- Disconnect the connector and then remove the switch.
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Loosen the screw and then remove the lower cover.
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Disconnect the remote control switch connector.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Loosen the screw.
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Loosen the screw and then remove the remote control switch.
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Remove the steering wheel upper cover.
 Courtesy of HYUNDAI MOTOR AMERICA
|
