Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  4. Remove the center console duct (A) after loosening the mounting nut.
    G12973166Courtesy of HYUNDAI MOTOR AMERICA

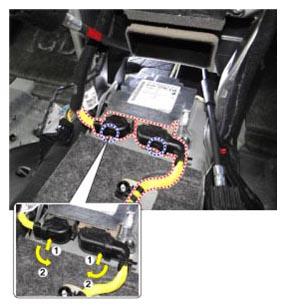

  5. Disconnect the SRSCM connectors.
    G12973167Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the SRSCM (A) after loosening the mounting nuts.
    G12973168Courtesy of HYUNDAI MOTOR AMERICA
