Section 78 (Supplemental Restraint System Control Module (SRSCM) And Sensors)
>>
Occupant Classification System (OCS)
>>
Components And Components Location
>>
Components
>>
Occupant Classification System (OCS) Unit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

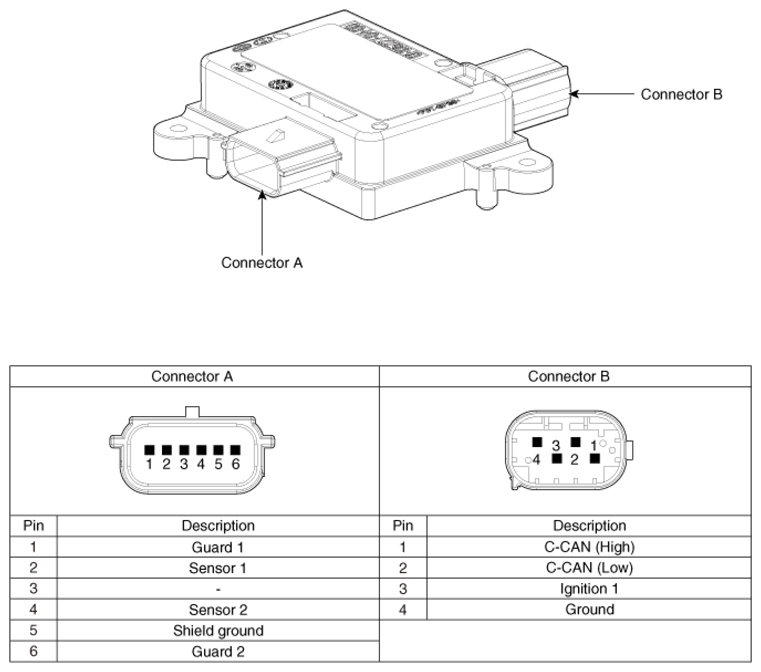

Occupant Classification System (OCS) Unit
WARNING:
This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of HYUNDAI MOTOR AMERICA
