Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

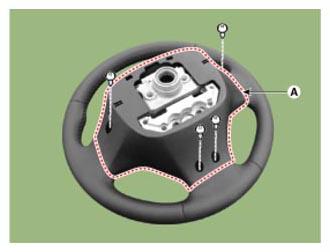

  3. Remove the steering back cover (A).
    G12974993Courtesy of HYUNDAI MOTOR AMERICA

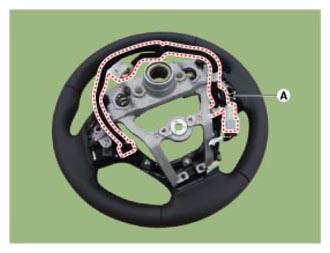

  4. Remove the steering remote control connector (A).
    G12974994Courtesy of HYUNDAI MOTOR AMERICA

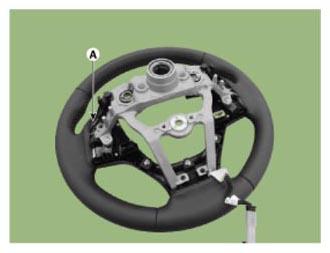

  5. Remove the steering remote control after loosening the screws.
    G12974995Courtesy of HYUNDAI MOTOR AMERICA
