Repair Procedures: Inspection

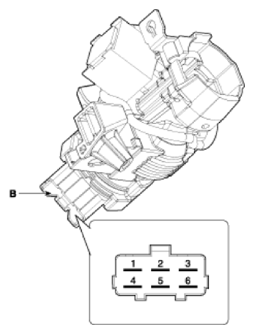

- Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

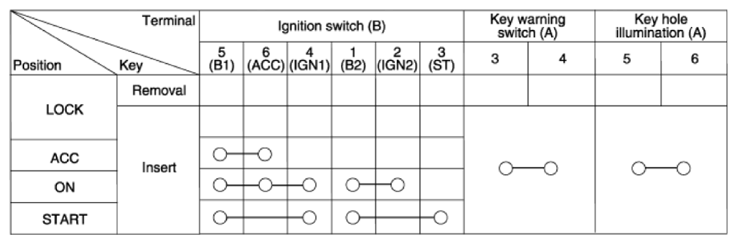

- Check for continuity between the terminals.
- If continuity is not specified, replace the switch.
 Courtesy of HYUNDAI MOTOR AMERICA
|
