Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

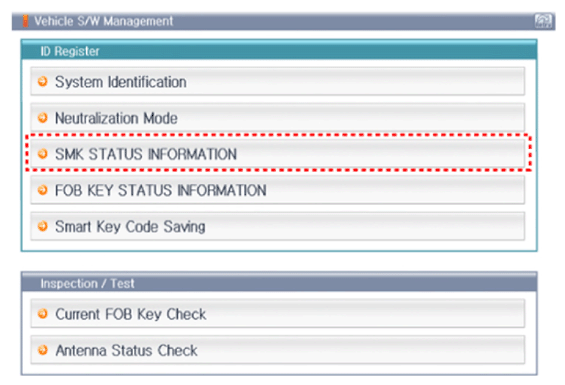

G14083176Courtesy of HYUNDAI MOTOR AMERICA

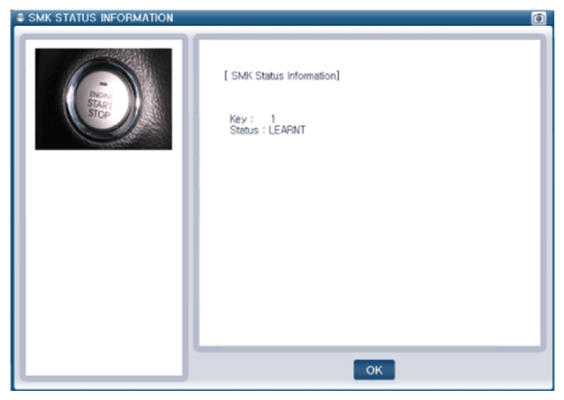

G14083177Courtesy of HYUNDAI MOTOR AMERICA
