Hyundai
>>
2020
>>
Elantra Sport
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Double Clutch Transmission Control System - 1.6L
>>
DCT Control Module (TCM)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

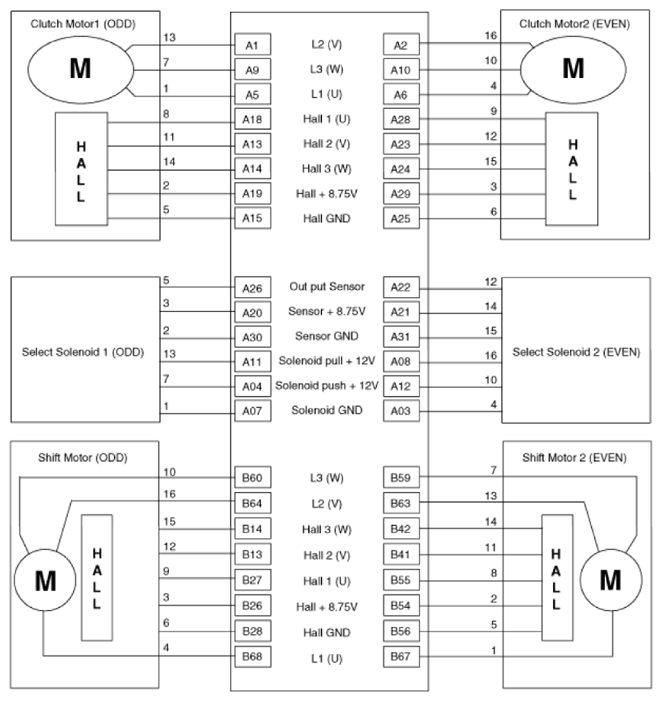

Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

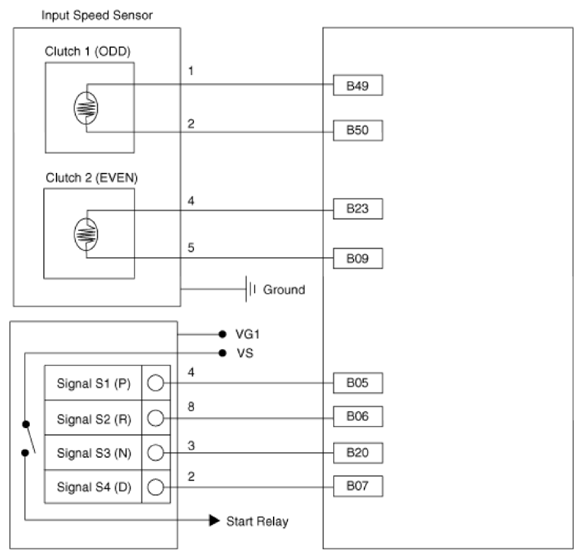

Courtesy of HYUNDAI MOTOR AMERICA
