Monitor DTC Status

1. Connect GDS and select "Diagnostic Trouble Codes (DTC)  " mode.
2. Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.

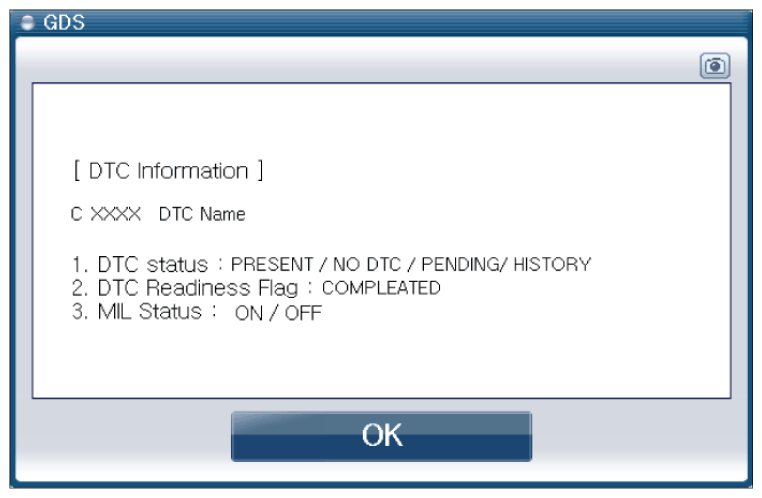

3. Read "DTC Status" parameter in DTC menu of the GDS.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Is parameter displayed "History (Not Present) fault"?

YES

• Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

• Go to next step.
