Repair Procedures: Inspection
- Turn off the ignition switch.
- Remove the battery and tray.

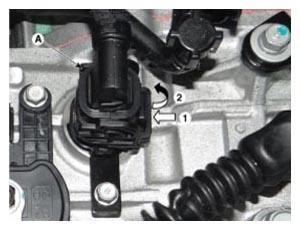

- Disconnect the solenoid valve connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Measure the resistance between solenoid valve signal terminal and ground terminal.
- Check that the measured resistance is within the specification.
