Hyundai
>>
2019
>>
Sonata SEL
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L (Except HEV)
>>
Manifold Absolute Pressure Sensor (MAPS)
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

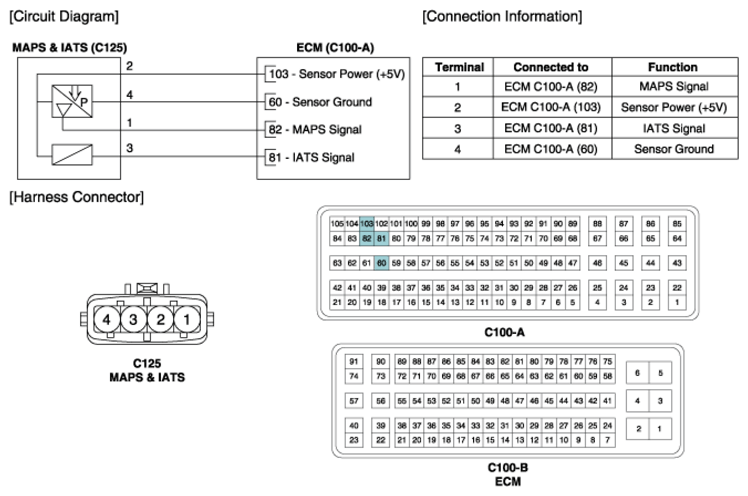

Circuit Diagram
