Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia panel.

    (Refer to "CONTROLLER ")

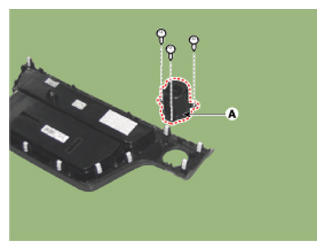

  3. Remove the start/stop button (A) from the center fascia garnish after loosening the mounting screws.
    G12764255Courtesy of HYUNDAI MOTOR AMERICA
