Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to "FUEL PUMP ")

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

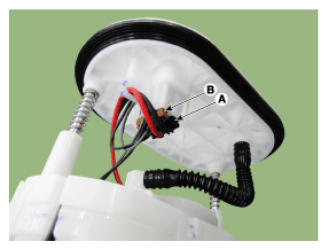

    G12793277Courtesy of HYUNDAI MOTOR AMERICA
  3. Press the fixing hook (A) with a driver and then remove fuel sender in the arrow direction.

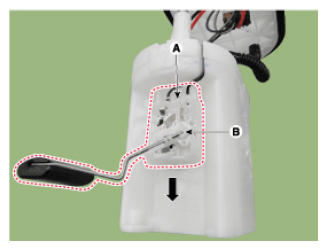

    G12793278Courtesy of HYUNDAI MOTOR AMERICA

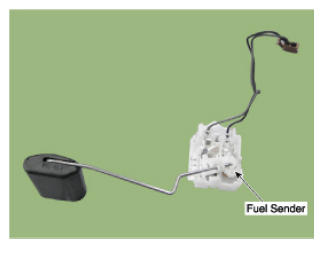

    G12793279Courtesy of HYUNDAI MOTOR AMERICA
