Schematic Diagrams
>>
Driver Power Window Switch
>>

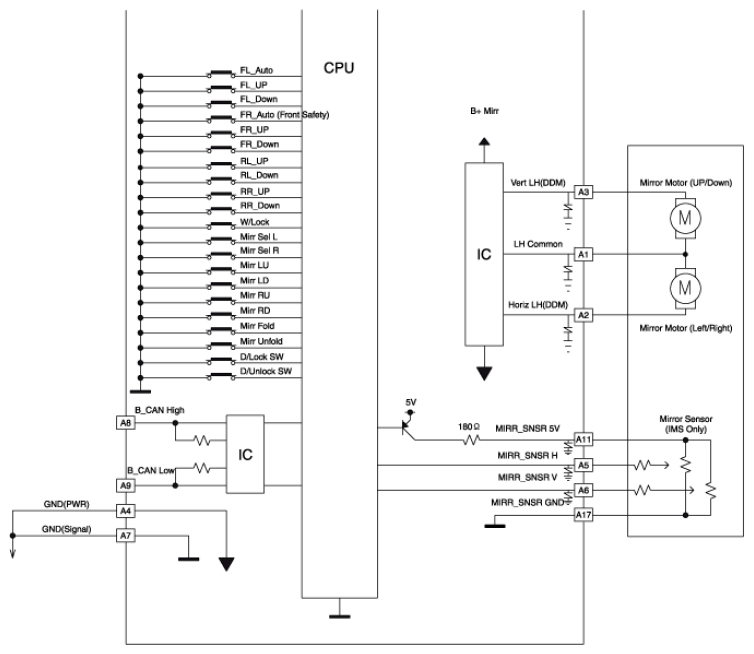

[Driver Power Window Module (IMS, Front Safety)]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

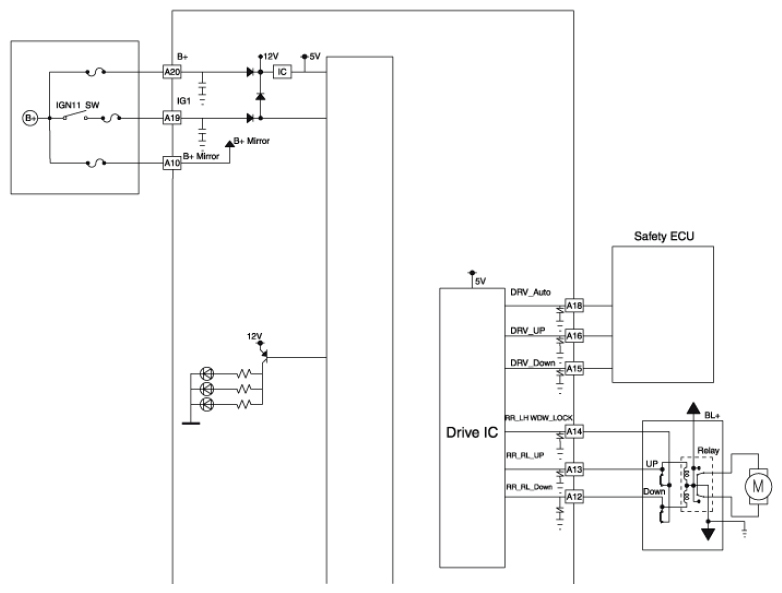

[Driver Power Window Module (IMS, Front Safety)]
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
