Repair Procedures: Removal

  1. Disconnect the Negative (-) Battery Terminal.
  2. Remove the Driver Seat Assembly.

    (Refer to "FRONT SEAT ASSEMBLY ")

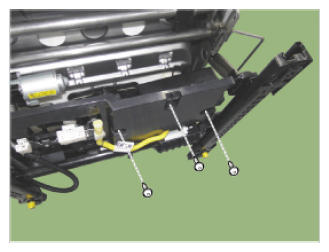

  3. Loosen the IMS unit mounting screws.
    G12794994Courtesy of HYUNDAI MOTOR AMERICA

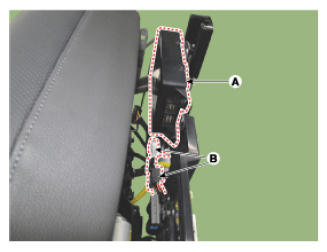

  4. Remove the IMS unit (A) after disconnecting the IMS unit connector (B).
    G12794995Courtesy of HYUNDAI MOTOR AMERICA
