Repair Procedures: Inspection

  1. Remove the memory power seat connector

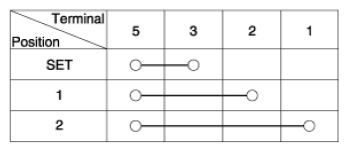

  2. When each switch is pressed, check the electric current between memory power seat switch connector and grounding, and if the electricity does not match the specification, replace the Switch.
    G12794999Courtesy of HYUNDAI MOTOR AMERICA
