Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

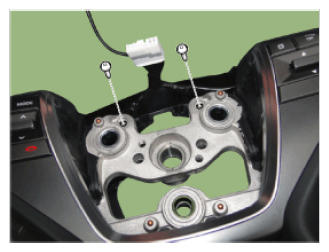

  3. Remove the screw from the steering cover.
    G12786971Courtesy of HYUNDAI MOTOR AMERICA

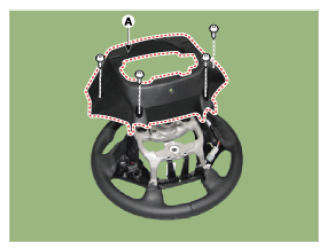

  4. Remove the steering back cover (A).
    G12786972Courtesy of HYUNDAI MOTOR AMERICA

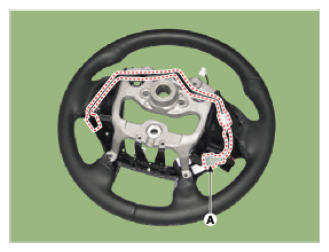

  5. Remove the steering remote control connector (A).
    G12786973Courtesy of HYUNDAI MOTOR AMERICA

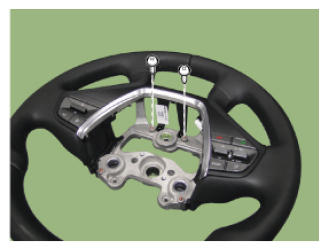

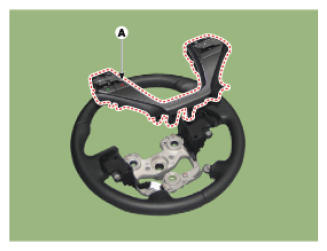

  6. Remove the steering remote control (A) after loosening the screw.
    G12786974Courtesy of HYUNDAI MOTOR AMERICA
    G12786975Courtesy of HYUNDAI MOTOR AMERICA
