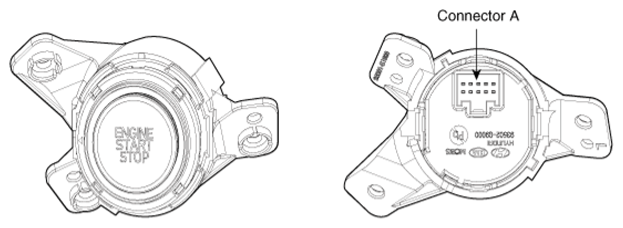

Components And Components Location: Component
 Courtesy of HYUNDAI MOTOR AMERICA
|
| Connector A |
 Courtesy of HYUNDAI MOTOR AMERICA
|
| No |
Description |
| 1 |
SSB switch 1 |
| 2 |
- |
| 3 |
SSB ILL (+) |
| 4 |
Immobilizer power |
| 5 |
- |
| 6 |
GND |
| 7 |
SSB switch 1 |
| 8 |
Rheostat |
| 9 |
SSB ring ILL |
| 10 |
Immobilizer GND |
