HCU Variant Coding

  1. Turn the ignition switch OFF.
  2. Connect the KDS/GDS to Data Link Connector (DLC).

    Turn the ignition switch ON.

  3. Select "Vehicle, Model year, Engine, System".
  4. Select "Vehicle S/W Management".

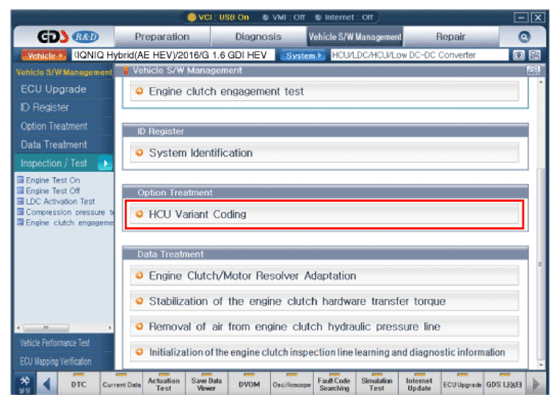

  5. Select "HCU Variant Coding".
    G12758719Courtesy of HYUNDAI MOTOR AMERICA
